MULTI-PURPOSE MODULE

NT-185U1

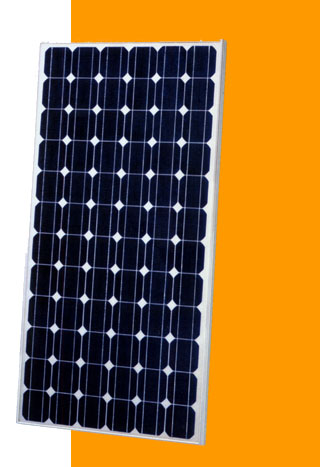

185 WATT BIG POWER, REVOLUTIONARY DESIGN. SINGLE CRYSTAL SILICON PHOTOVOLTAIC MODULE WITH 185W MAXIMUM POWER This single crystal 185 watt module features 17.5% encapsulated cell efficiency and 14.2% module efficiency - the highest efficiency commercially available. Using breakthrough technology perfected by Sharp's nearly 45 years of research and development, these modules use a textured cell surface to reduce reflection of sunlight, and BSF (Black Surface Field) structure to improve conversion efficiency. An anti-reflective coating provides a uniform blue color and increases the absorption of light in all weather conditions. Common applications include office buildings, cabins, solar power stations, solar villages, radio relay stations, beacons, and traffic lights. Ideal for grid-connected systems and designed to withstand rigorous operating conditions, Sharp's NT-185U1 modules offer the maximum usable power per square foot of solar array.

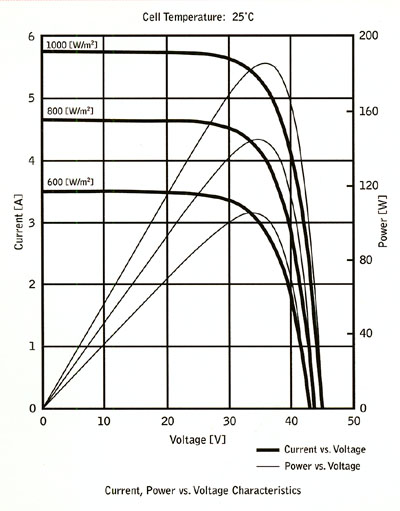

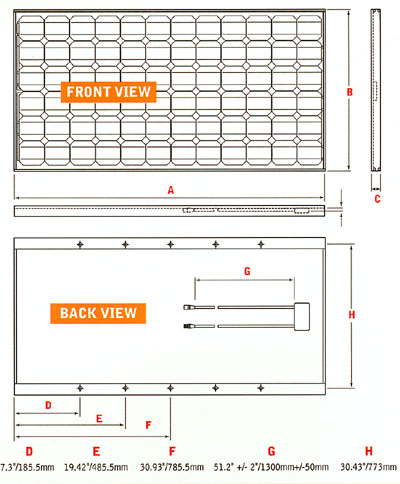

Solder-coated grid results in high fill factor performance under low light conditions. Sharp multi-purpose modules offer industry leading performance for a variety of applications. ELECTRICAL CHARACTERISTICS Cell Single crystal silicon No. of Cells and Connections 72 in series Open Circuit Voltage (Voc) 44.9V Maximum Power Voltage (Vpm) 36.2V Short Circuit Current (Isc) 5.75A Maximum Power Current (Ipm) 5.11A Maximum Power (Pm)* 185W Minimum Power (Pm)* 166.5W Encapsulated Solar Cell Efficiency (nc) 17.48% Module Efficiency (nm) 14.23% PTC Rating (W)** 162.43 Maximum System Voltage 600VDC Series Fuse Rating 10A Type of Output Terminal Lead Wire with MC Connector MECHANICAL CHARACTERISTICS Dimensions (A x B x C below) 62.01 x 32.52 . 1.81" / 1575 x 826 x 46mm Weight 37.485 lbs / 17.0 kg Packing Configuration 2 pcs per carton Size of Carton 66.93 x 38.19 x 5.12" / 1700 x 970 x 130mm Loading Capacity (20 ft container) 168 pcs (84 cartons) Loading Capacity (40 ft container) 392 pcs (196 cartons) ABSOLUTE MAXIMUM RATINGS Operating Temperature -40 to 194°F / -40 to +90°C Dielectric Isolation Voltage 220 VDC max. IV CURVES DIMENSIONS Specifications are subject to change without notice. *(STC) Standard Test Conditions: 25°C, 1 kW/m2, AM 1.5 **(PTC) Pacific Test Conditions: 20°C, 1 kW/m2, AM 1.5, 1 m/s wind speed

FEATURES High power module (185W) using 125mm square single crystal silicon solar cells with 14.2% module conversion efficiency Photovoltaic module with bypass diode minimizes the power drop caused by shade Textured cell surface to reduce the reflected sunlight and BSF (Black Surface Field) structure to improve cell conversion efficiency: 17.5% White tempered glass, EVA resin, and a weatherproof film, plus aluminum frame for extended outdoor use Nominal 24VDC output, perfect for grid-connected systems UL Listings: UL 1703, cUL Sharp modules are manufactured in ISO 9001 certified facilities 25-year limited warranty
