MULTI-STRING INVERTER

JH-3500U

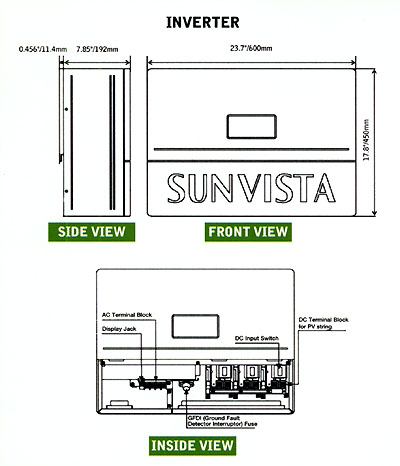

3500W Inverter RELIABILITY. FLEXIBILITY. EFFICIENCY. SHARP'S UNIQUE SUNVISTA MULTI-STRING POWER CONDITIONER IS THE HEART OF THE PV SYSTEM More than just an inverter, the JH-3500U is a versatile power conditioner engineered to blend energy from up to three input strings, each varying by number, model, and angle of modules. Now architects and installers can design systems that meet exact power requirements while creating a clean, professional look on the roof. Plus, with its active cooling and ultra-high efficiency, Sharp's inverter maintains stable power output even in extreme temperatures. Perfectly matched to Sharp modules and mounting hardware, the JH-3500U is also compatible with many other manufactures' systems, and is ideal for both residential and commercial applications. With over 60,000 units in the field, the Sharp Sunvista has proven to be among the most dependable and flexible inverters in the world.

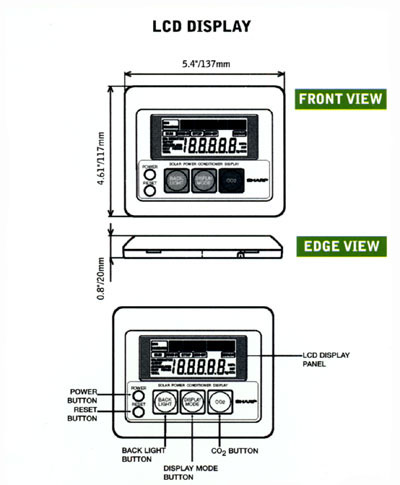

The Sharp solar power LCD display monitor blends beautifully with the homeowner's decor and displays instantaneous and cumulative electricity generation and CO2 reduction levels. Sharp's 3.5kW inverter is designed with a neutral-toned NEMA 3R housing that integrates into the look of almost any style home. ELECTRICAL CHARACTERISTICS Maximum system voltage (DC) 380V Rated input voltage (DC) 240V Range of operating DC voltage (DC) 110V - 350V Maximum array short circuit current (DC) 10A Maximum operating current (DC) 22.5A (7.5A per DC input x 3) Nominal output voltage (AC) 240V Operating voltage range (AC) 211V - 264V 185W Nominal output frequency (AC) 60Hz Operating frequency range (AC) 59.3Hz - 60.5Hz Maximum continuous output current (AC) 15A Maximum continuous output power (AC) 3500W (at DC input 160-320V) Maximum input power 4500W Peak conversion efficiency 92.4% Power factor More than 0.95 Total harmonic distortion (THD) Less that 5% Operating temperature Inverter: -4°F to 104°F / -20°C to +40°C Operating temperature LCD Display: 32°F to 104°F / 0°C to +40°C MAIN CIRCUIT Solar power conditioner system Fixed voltage current control system Switching system PWM (pulse width modulation) system Isolation system Built- in high frequency isolation transformer system Electric system 1-phase 2-wire system (connected to 1-phase 3-wire system) PROTECTION Grid-connected protection AC Over Voltage / Under Voltage, AC Over Frequency / Under Frequency detection anti-islanding component (IEEE929) Ground fault protection DC detector / interrupter MECHANICAL CHARACTERISTICS Dimensions (W x D x H) Inverter: 23.7 x 17.8 x 7.85"/600 x 450 x 192mm LCD Display: 5.4 x 4.61 x 0.8"/137 x 117 x 20mm Weight Inverter: Approx. 61.7 lbs/ 28kg LCD Display: Approx. 0.44 lbs/ 0.2 kg Enclosure type NEMA 3R DIMENSIONS Specifications are subject to change without notice.

FEATURES High-frequency isolation transformer for light weight and easy installation High output power: 3.5kW NEMA 3R housing for outdoor installation Active cooling system for stable power output Multi-string layout of PV modules Surface mount LCD display for indoor installation UL 1741 Listed IEEE 929 Compliant Manufactured in ISO 9002 certified facilities 5-year limited warranty

In the absence of confirmation by product manuals, Sharp takes no responsibility
for any defects that may occur in equipment using any Sharp devices.

Contact Sharp to obtain the latest product manuals before using any Sharp device.
