YAMAMOTO
IMPELLER with OSCILLATION HUSKER
CATALOG


SY-SERIES

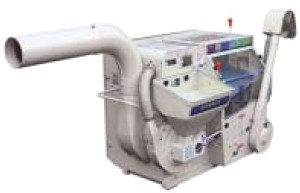

Model: SY-5
model sy-5 impeller with oscillation husker

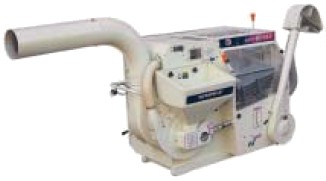

Model SY-10
model sy-10
HIGH HUSKING EFFICIENCY EASY OPERATION

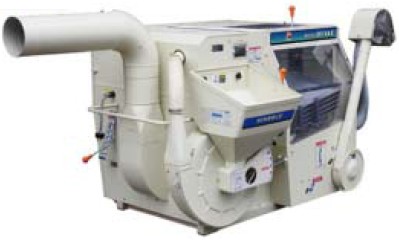

Model SY-35
Model SY-35

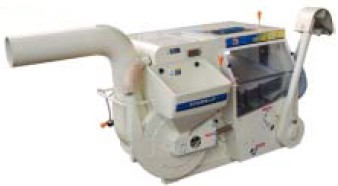

Model: SY-15
model sy-5 impeller with oscillation husker

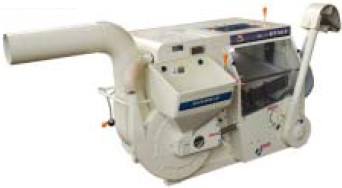

Model SY-25
Model sy-25 impeller husker
Yamamoto Impeller with Oscillation Husker
Yamamoto Impeller type husker is very compact machine, which is designed for a small scale users. This husker is very unique design with an impeller instead of using traditional rubber rolls. This allows even relatively high moisture contents of paddy can be shelled out with high husking efficiency, regardless of any type of paddy, which was ever almost impossible for rubber roll type of huskers.
impeller motor photo Characteristics
Easy operation
Easy to adjust Tray angle with Lever
Easy to know separating conditions

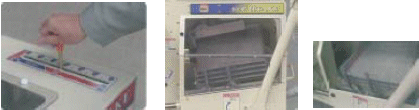

sy catalog pictures of different views of the impellar husker controls and features
Easy maintenance & Clean Operation

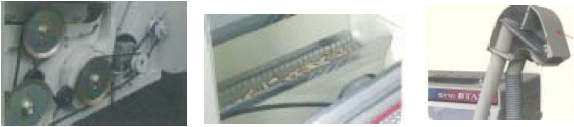

more photos of the features of the impeller husker, namely the layout of some of the belts

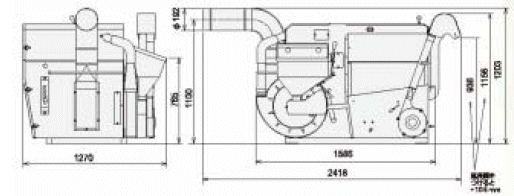

Dimensions and Specifications
diagram of the contruction and physical layout of the impellar huskars
SY5 SY10 SY15 SY25
L×W×H: mm 1394-898-1176 1394-898-1176 1526-1037-1163 1556-1175-1203
Weight: kg 145 151 191 220
Capacity: kg 240-420 360-720 600-1020 900-1500
Motor: 3-Phase 200V
0.75kw
3 Phase 200V
1.9kw
3 Phase 200V
1.9kw
3 Phase 200V
2.2kw
Number of Trays: 2 3 4 5


EXPERIENCED MANUFACTURER OF POST-HARVEST MACHINE FOR THE CEREALS

We create future of agriculture
YAMAMOTO CO.,LTD.

If you are interested in any YAMAMOTO product in the USA or north
and south America, please contact Calibration Plus. We are glad to help.
